DS-5L

모델명 DS-5L
제조사
용도
문의전화
Product Description

Features

  • - Safety due to the cushion clutch even in the overload state.
  • - High torque operation because of adjustable the torque by an air regulator.



For Use Attention

  • - Before using, read manual supplied with tool.
  • - Wear ear and eye protection.
  • - Repetitive motions or exposure to vibration may be harmful to your hands or arms.
  • - Use only standard accessories.



Specification

Model Bit size Max.
free speed
Max. torque Length Weight Thread
air inlet
Hose size
(outer – inner)
Average
air consumption
Noise Recommended
air pressure
mm RPM kg.cm N.m in mm Ib kg in mm ft3/min m3/min dB PSI kgf/cm2
DS-5L 6.35 1,400 20-40 1.96-3.92 10.63 270 2.42 1.1 PT 1/4 8-5 7 0.2 88 71 5

← → You can scroll left and right.



Recommended Arrangement of Air Piping



Recommended-Arrangment-of-Air-Piping

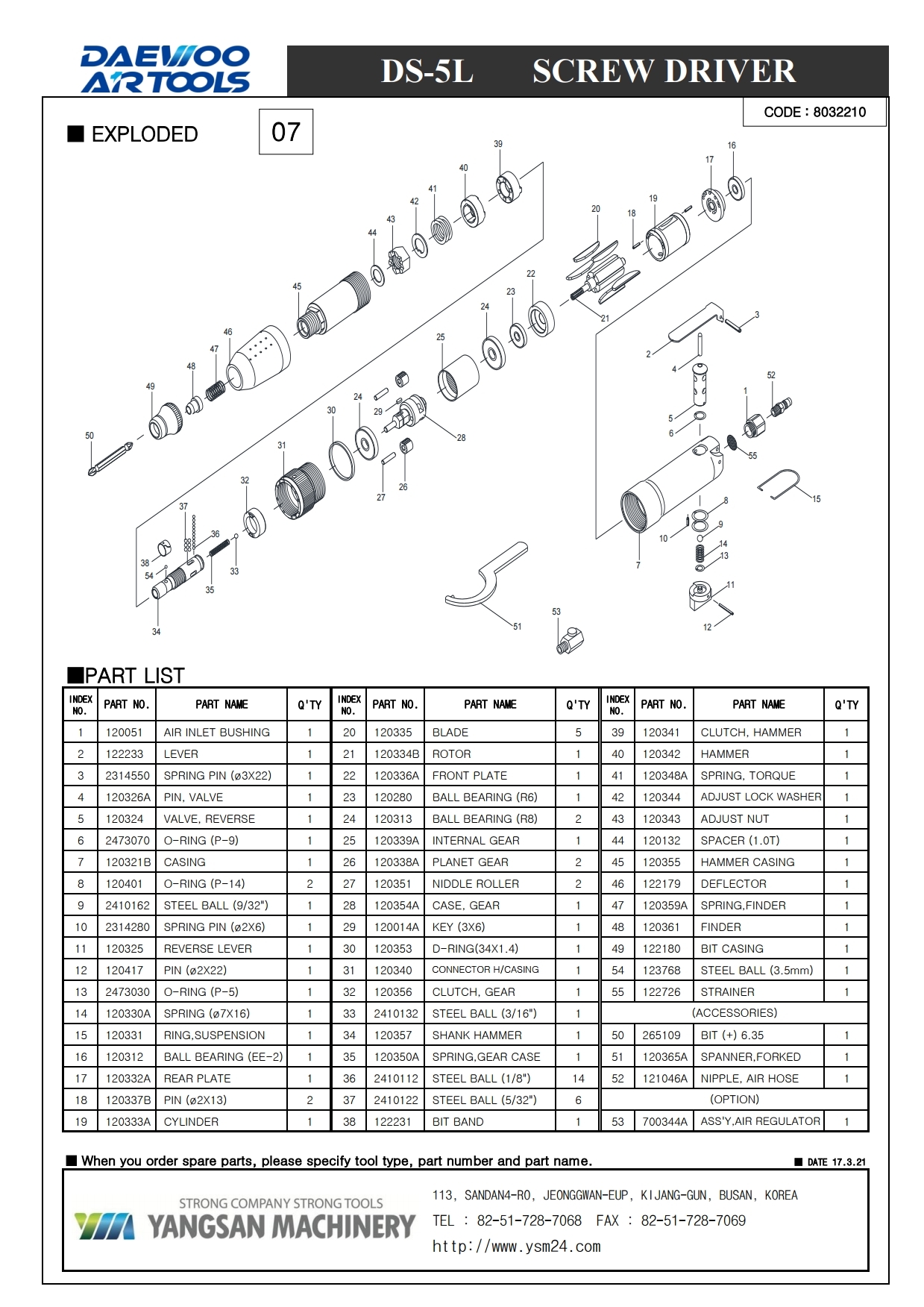

Exploded

DS-5L_exploded
