DNH-16

모델명 DNH-16
제조사
용도
문의전화
Product Description

Features

  • - Shock absorbing rubber covered
  • - Widely used for removing the scales after welding, sanding after casting, and cutting process
  • - High power with even light weight





For Use Attention

  • - Before using, read manual supplied with tool.
  • - Wear ear and eye protection.
  • - Repetitive motions or exposure to vibration may be harmful to your hands or arms.
  • - Use only standard accessories.



Specification

Model Chisel shank Blow Length Weight Thread air inlet Average air consumption Noise Recommended air pressure
mm b/min in mm Ib kg in ft3/min m3/min dB PSI kgf/cm2
DNH-16 Ø3 x 180 6,000 7.87 200 2.07 0.94 PT 3/8 5.65 0.16 88 85 6

← → You can scroll left and right.



Recommended Arrangement of Air Piping



Recommended-Arrangment-of-Air-Piping

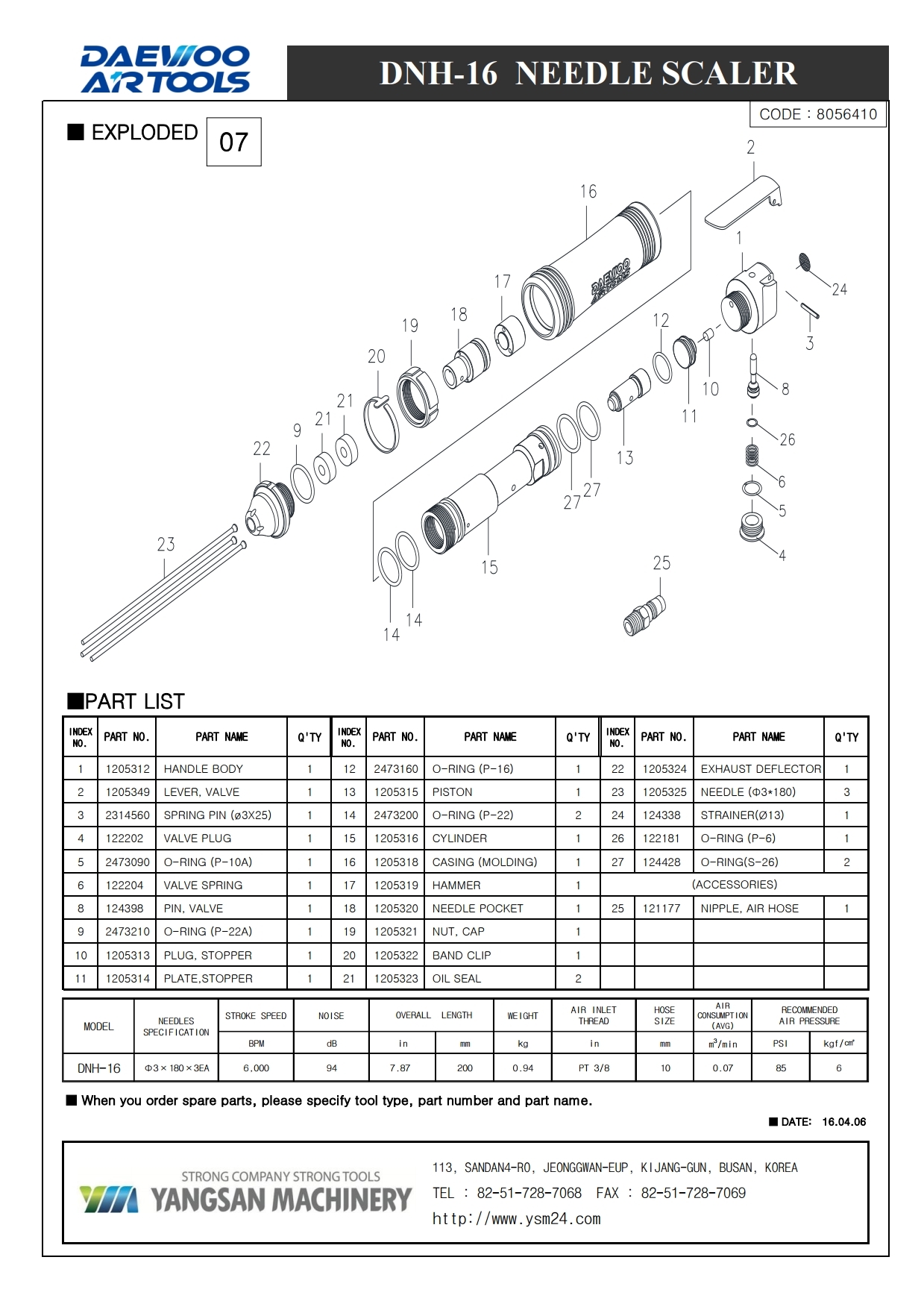

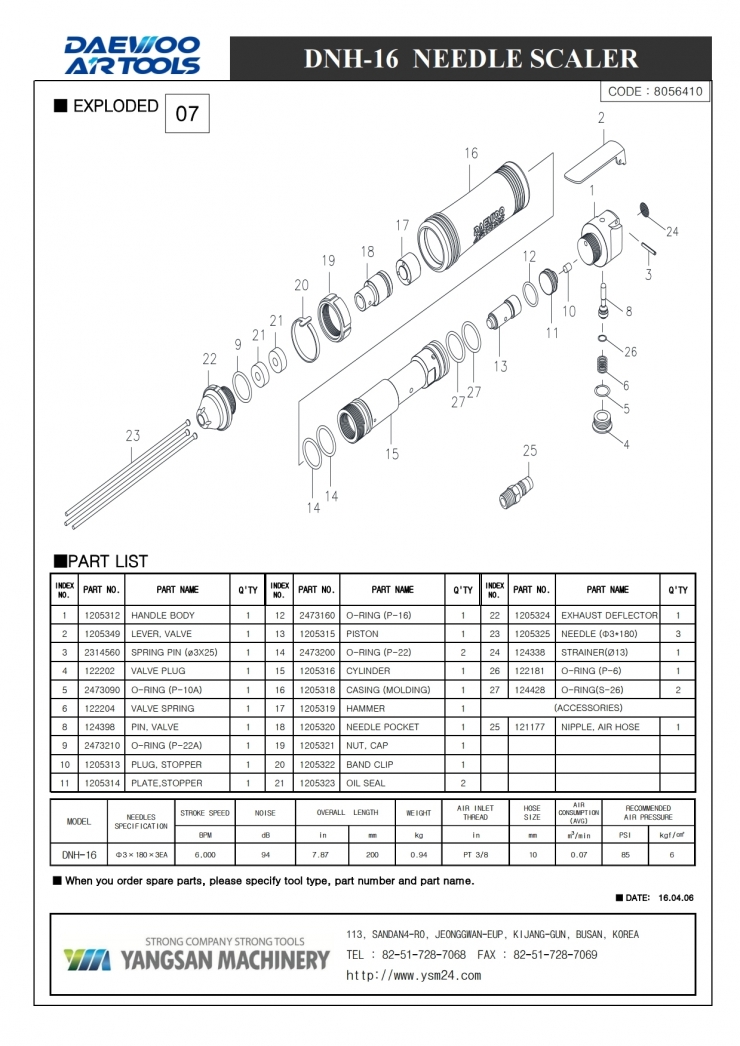

Exploded

DNH-16_exploded
