DGL-38L

모델명 DGL-38L
제조사
용도
문의전화
Product Description

Features

  • - Lever type on the On / Off for simple working
  • - Easy operation in the corner or narrow space by its extended spindle
  • - 3.0mm shaft attachable with a special Bushing



For Use Attention

  • - Before using, read manual supplied with tool.
  • - Wear ear and eye protection.
  • - Repetitive motions or exposure to vibration may be harmful to your hands or arms.
  • - Use only standard accessories.



Specification

Model Capacity
(wheel size)		 Max.free speed Max.power Length Weight
(without wheel)		 Thread
air inlet		 Average air
consumption		 Noise Recommended
air pressure
in mm RPM HP W in mm Ib kg in ft3/min m3/min dB PSI kgf/cm2
DGL-38L - 6(3) 25,000 0.45 340 12.6 320 2.02 0.92 PT 1/4 10.7 0.3 83 85 6

← → You can scroll left and right.



Recommended Arrangement of Air Piping



Recommended-Arrangment-of-Air-Piping

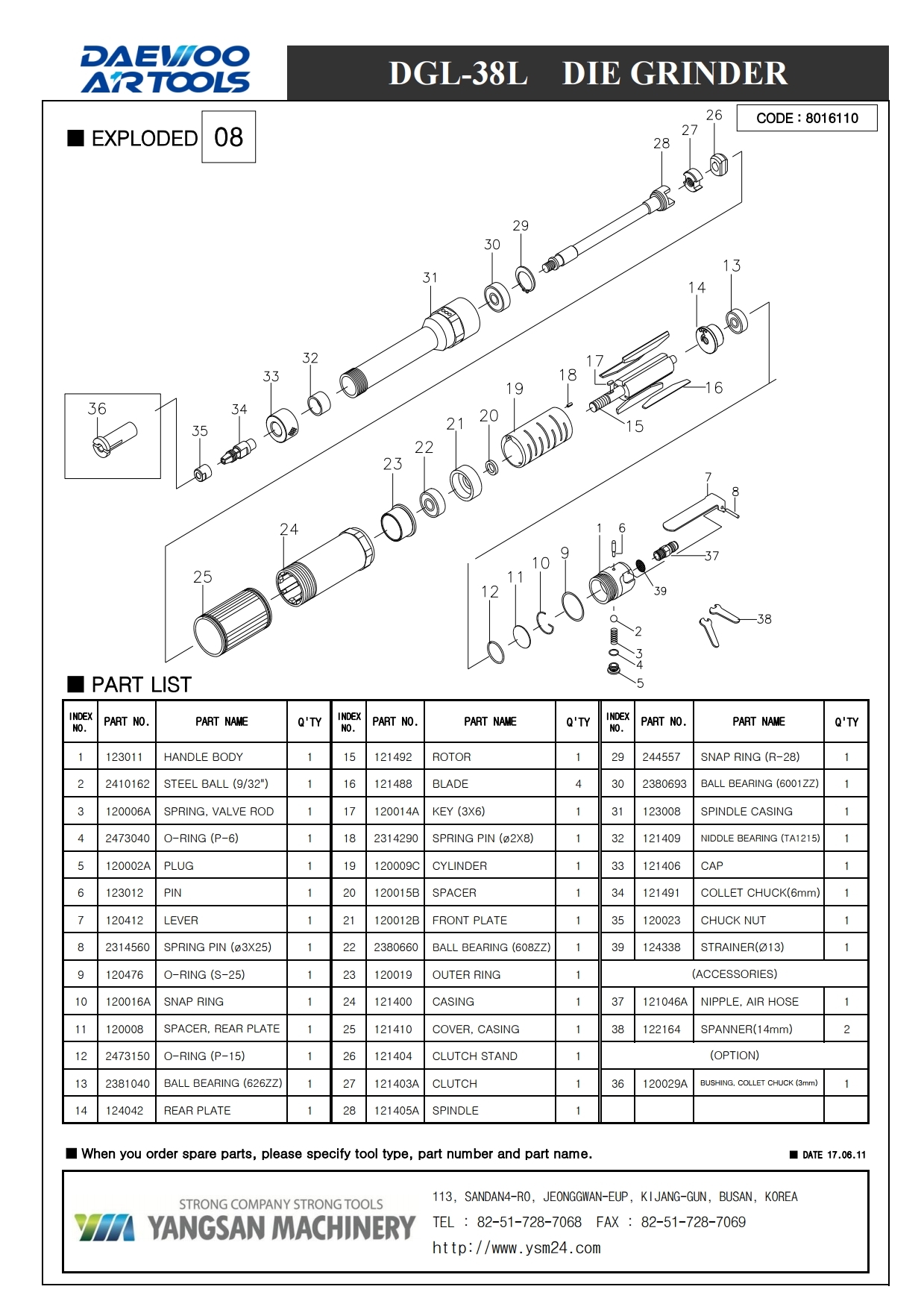

Exploded
DGL-38L_exploded
