DAG-2CS

모델명 DAG-2CS
제조사
용도
문의전화
Product Description

Features

  • - Possible to equip with various 2″ or 2.5″ grinder disc
  • - On / Off valve by Roll type
  • - Compact and ultralight with good performance
  • - Easy operation at the corner
  • - Suitable for post-treatment process after CASTING



For Use Attention

  • - Before using, read manual supplied with tool
  • - Wear ear and eye protection
  • - Repetitive motions or exposure to vibration may be harmful to your hands or arms
  • - Use only standard accessories

Size

Model Capacity(wheel size) Max.free speed Max.power Length Weight(without wheel) Thread air inlet Average air consumption Noise Recommended air pressure
in mm RPM HP W in mm Ib kg in ft3/min m3/min dB PSI kgf/cm2
DAG-2CS 6 22,000 0.4 300 5.35 136 1.14 0.52 PT 1/4 9.1 0.25 93 85 6

← → You can scroll left and right.

Recommended Arrangement of Air Piping

Recommended-Arrangment-of-Air-Piping

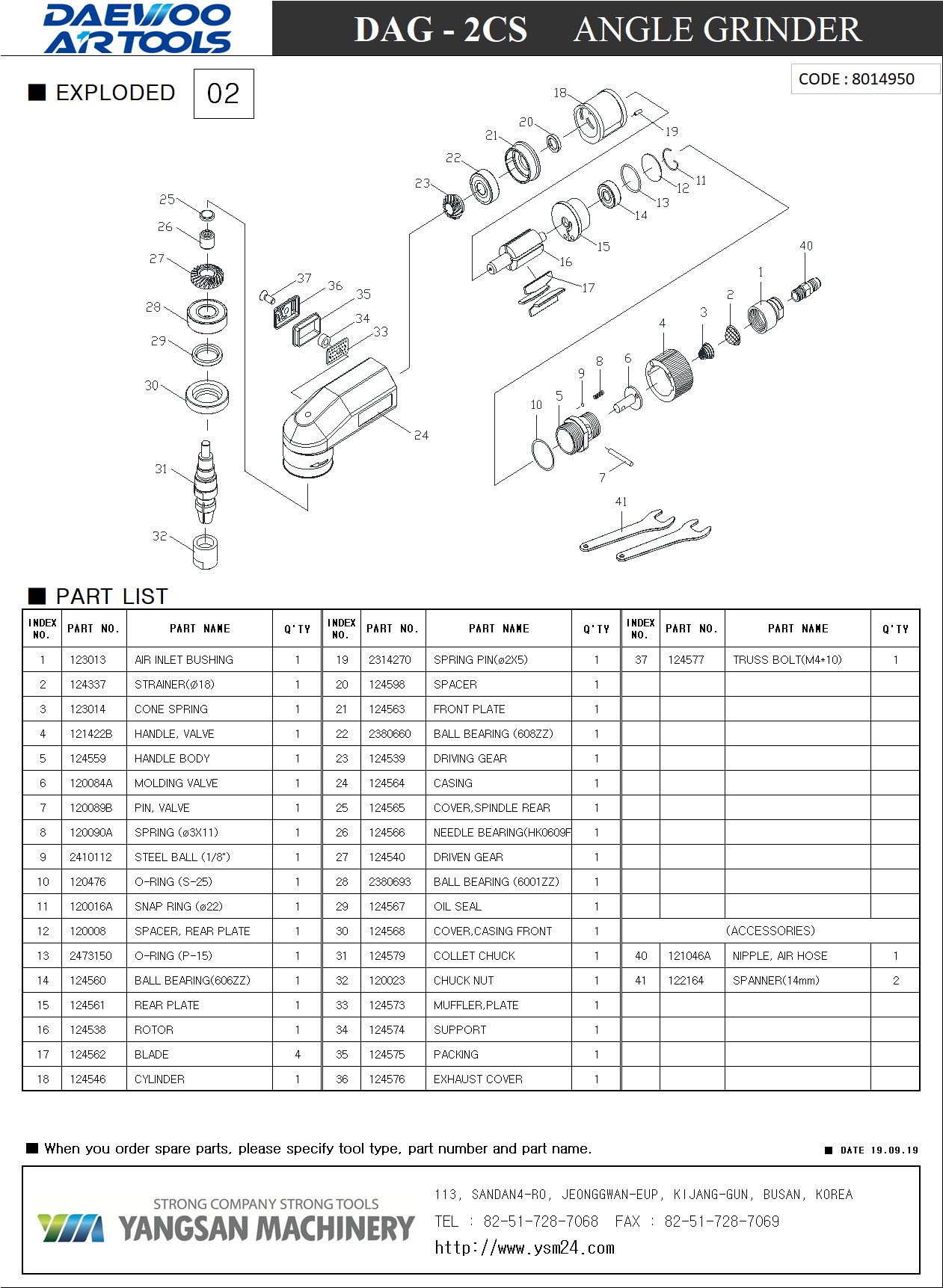

Exploded

DAG-2CS_exploded
