DAG-100ST

모델명 DAG-100ST
제조사
용도
문의전화
Product Description

Features

  • - The external thread type (M10 x 15)
  • - Many kinds of wheels are attacheable such as normal abrasive wheels, cup brushes, paper wheels, sanding disks and wire brushes
  • - On / Off valve by Roll type



For Use Attention

  • - Before using, read manual supplied with tool
  • - Wear ear and eye protection
  • - Repetitive motions or exposure to vibration may be harmful to your hands or arms
  • - Use only standard accessories

Size

Model Capacity(wheel size) Max.free speed Max.power Length Weight(without wheel) Thread air inlet Average air consumption Noise Recommended air pressure
in mm RPM HP W in mm Ib kg in ft3/min m3/min dB PSI kgf/cm2
DAG-100ST 4 100 11,000 0.7 520 8.2 210 3.8 1.72 PT 1/4 22 0.6 86 85 6

← → You can scroll left and right.

Recommended Arrangement of Air Piping

Recommended-Arrangment-of-Air-Piping

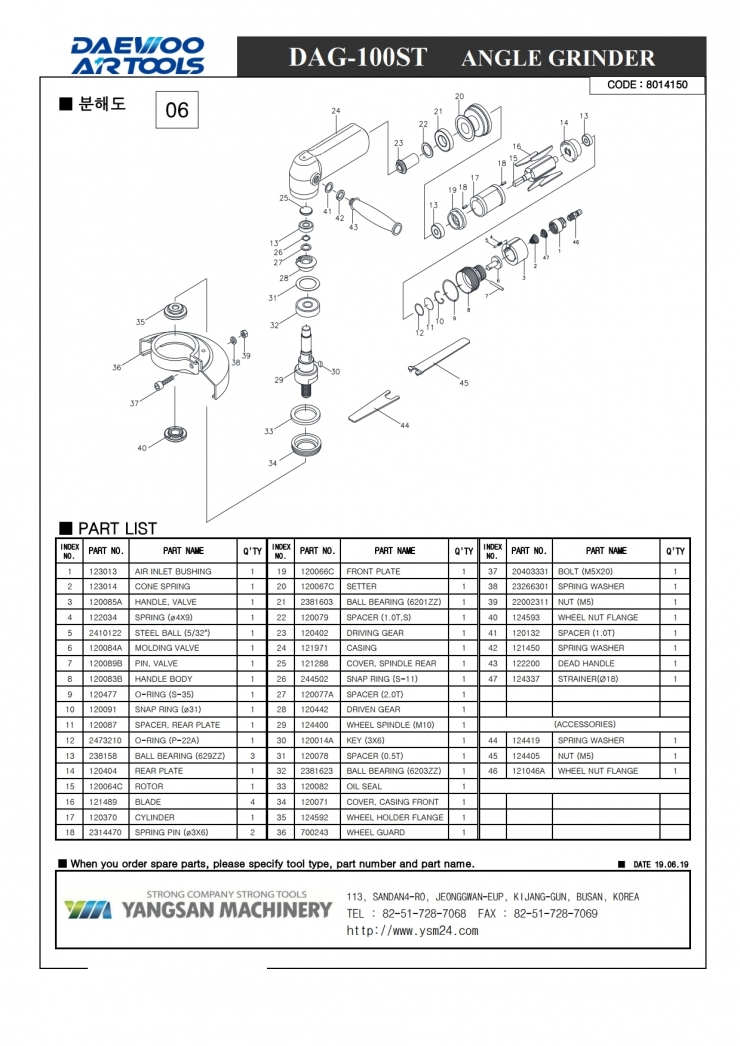

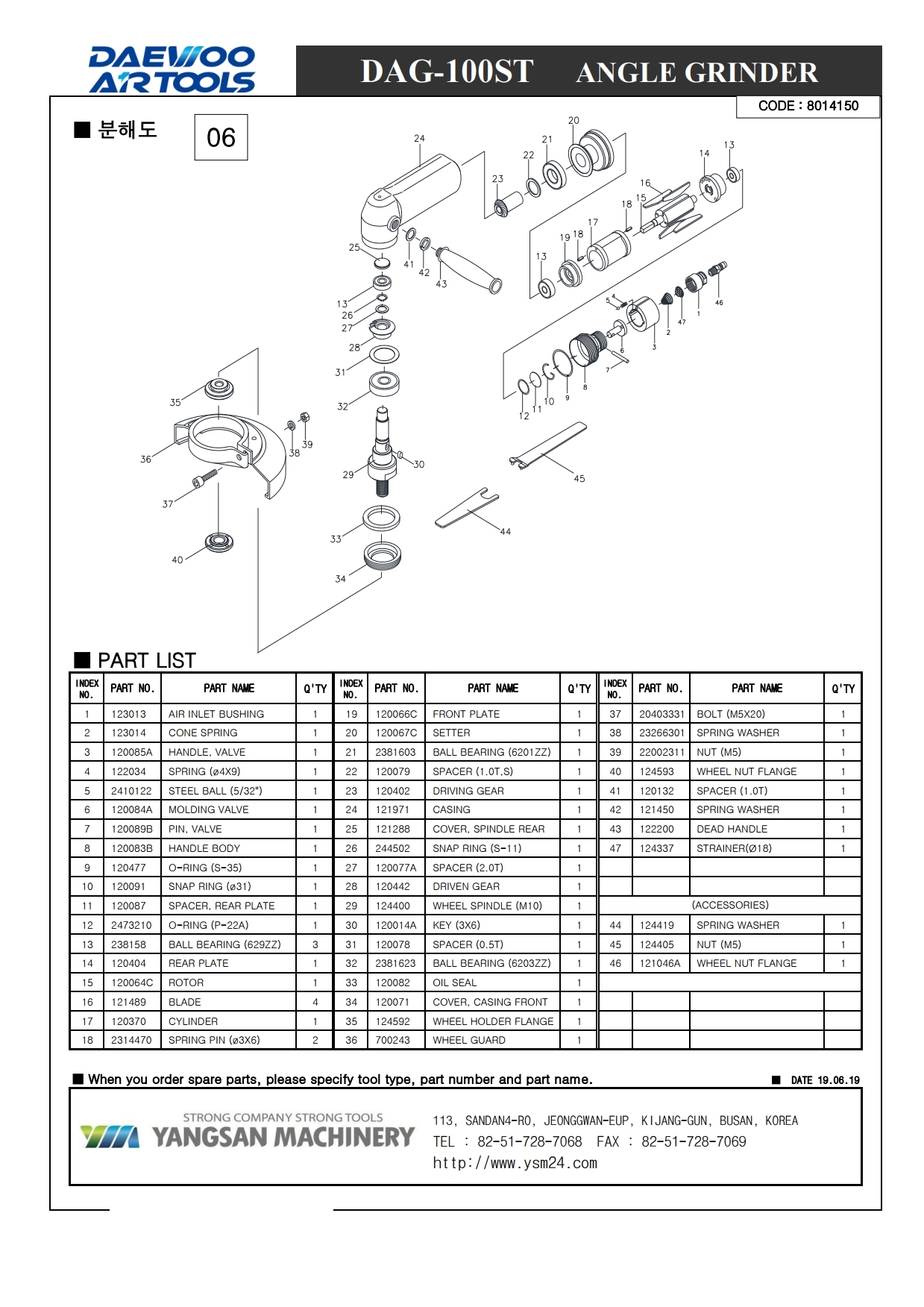

Exploded

DAG-100ST_exploded
