DAG-100LP

모델명 DAG-100LP
제조사
용도
문의전화
Product Description

Features

  • - Exhaust air direction 90 degree (right-hand side)
  • - Protection from hazard by the safety lever, which controls the operation of air tools



For Use Attention

  • - Before using, read manual supplied with tool
  • - Wear ear and eye protection
  • - Repetitive motions or exposure to vibration may be harmful to your hands or arms
  • - Use only standard accessories

Size

Model Capacity(wheel size) Max.free speed Max.power Length Weight(without wheel) Thread air inlet Average air consumption Noise Recommended air pressure
in mm RPM HP W in mm Ib kg in ft3/min m3/min dB PSI kgf/cm2
DAG-100LP 4 100 11,000 0.7 520 8.8 225 4.23 1.92 PT 1/4 22 0.6 86 85 6

← → You can scroll left and right.

Recommended Arrangement of Air Piping

Recommended-Arrangment-of-Air-Piping

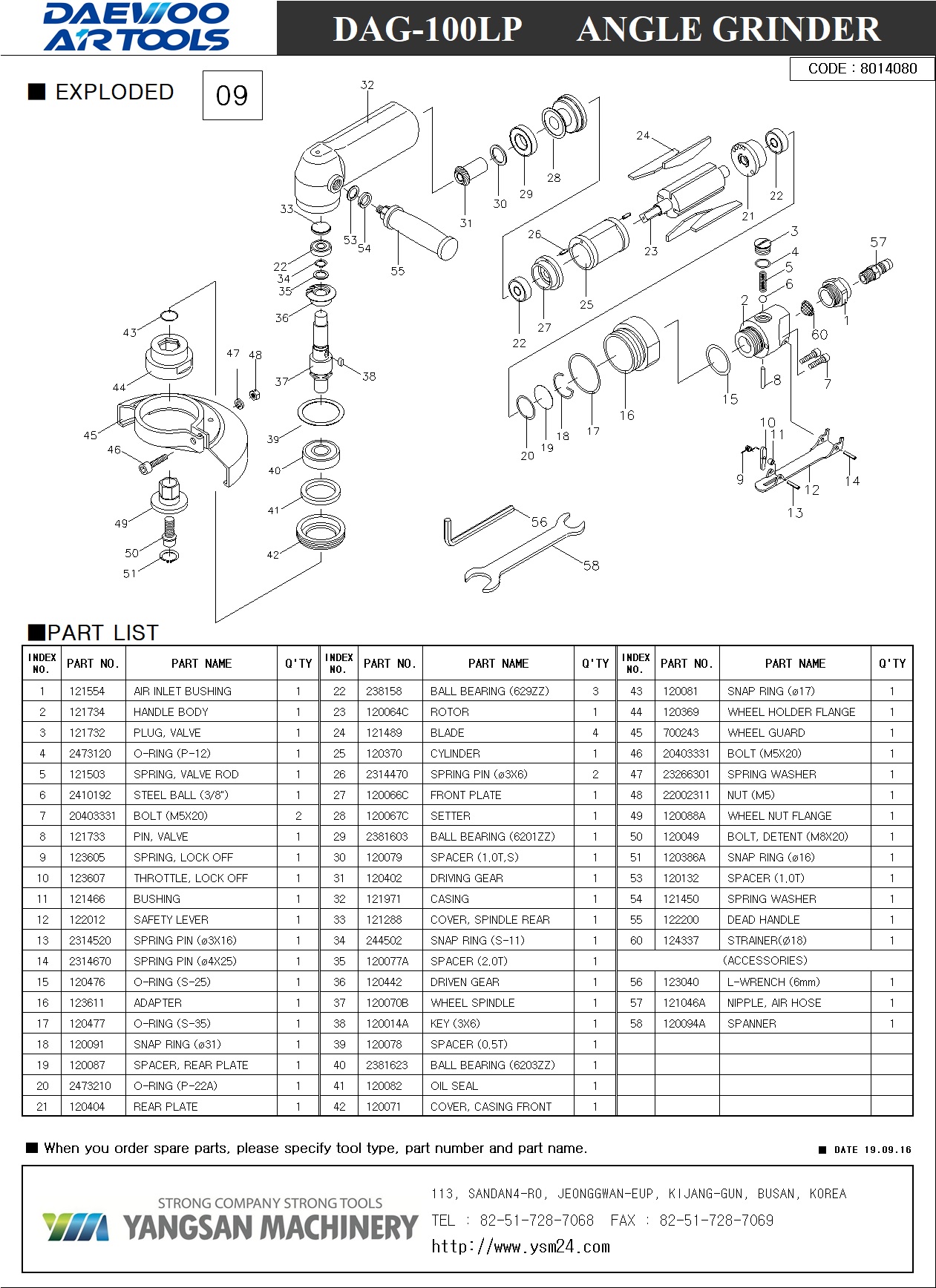

Exploded

DAG-100LP_exploded
